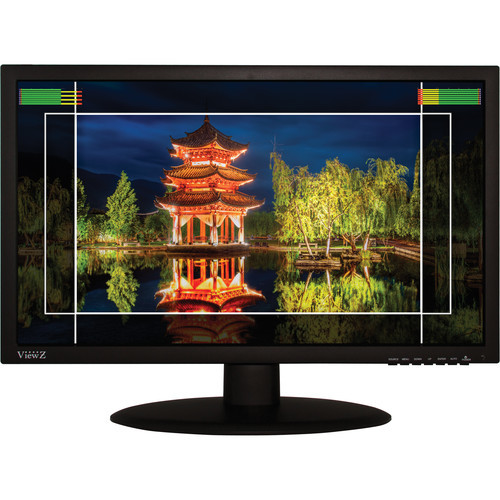

ViewZ 21.5" LCD 3G-SDI מוניטור/מסך שולחני משתלם במיוחד!

  Screen Size

21.5 inch

  Max Resolution

1920 x 1080

  Brightness

250cd/m²

  Contrast Ratio

1000:1

  Aspect Ratio

16:9

  Viewing Angle (H/V)

170°/160°

  Color Depth

16.7 Million

  Response Time

5 ms

Color Temp.

3200K, 6500K, 9300K and User settings

  Line Marker Option

16:9, 4:3, 4:3(on air), 15:9, 14:9, 13:9, 1.85:1,
2.35:1, 1.85:1 & 4:3

  Safety Area Option

Off, 80%, 85%, 88%, 90%, 93% and 100%

  RGB Gain

-128 to 128

  RGB Bias

-50 to 50

  SDI In / Out

1 / 1

  HDMI In

1

  DVI In

1

  Component In (BNC jack) - (3CVBS, S-Video, Component)

3

  VGA In (15Pin D-Sub)

1

  Audio In (PC Stereo)

1

  RJ-45 In (Remote Control)

1

  PGM Port ( Program Update / HDMI Connector )

1

  Built-in Speakers

2W x 2

  Outline Dimension (W x H x D) inch

20.25 " x 14.56 " x 1.77”

  (W x H x D) millimeter

514.5 mm x 370 mm x 44.958 mm

  Net Weight

8.4 lbs ( 3.8 kg )

SDI - SMPTE 425M-A

1080p ( 60/59.94/50 )

SDI - SMPTE 274M

1080P (30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080Psf (30/29.97/25/24/23.98)

SDI - SMPTE 296M

720P(60/59.94/50/30/29.97/25/24/23.98)

SDI - SMPTE 125M

525i (NTSC 59.94)

SDI - ITU-R BT.601

625i (PAL 50)

SDI - 2K Format

2048 x 1080P (24/23.98/24sF/23.98sF)

Analog - COMPONENT

1080P (60/59.94/50/ 30/29.97/25/24/23.98)
1080i (60/59.94/50)
720P(60/59.94/50)

HDMI

480i/480P/576i/576P/1080i/1080P

DVI

VGA, SVGA, XGA, SXGA, WXGA, WUXGA

VGA

VGA, SVGA, XGA, SXGA, WXGA, WUXGA
